- Model：Series CG
- Capacity：7000btu-30000btu
- Noise：21-46db
- Inquire Now

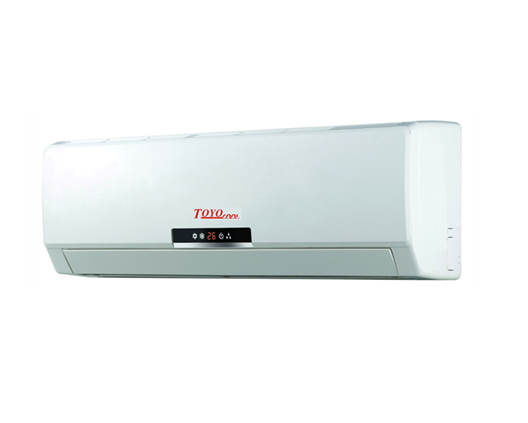

DC Inverter Series G
- Features
- Specifications
- Service Support
| Model | CS-25V3A-VB150AY4M | CS-35V3A-MB150AY4P | CS-51V3A-PB150AE2K | CS-70V3A-WB150ASD | ||
| Power Supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | |
| Capacity | Cooling | Btu/h | 9000 | 12000 | 18000 | 24000 |
| w | 2650 | 3500 | 5100 | 7000 | ||
| Heating | Btu/h | 9400 | 12600 | 18500 | 25300 | |
| w | 2900 | 3700 | 5500 | 7400 | ||
| power lnput | Cooling | w | 490-1100 | 600-1400 | 2400-5600 | 700-3000 |
| Heating | w | 420-1190 | 600-1300 | 2500-6400 | 700-3000 | |
| Opersting Current | Cooling | A | 2.3-5.4 | 2.6-6.0 | 2.7-8.3 | 3.2-13.6 |
| Heating | A | 2.0-5.7 | 2.6-5.8 | 2.7-8.9 | 3.2-13.6 | |
| EER | W/W | 3.21 | 3.21 | 3.27 | 3.21 | |
| COP | W/W | 3.62 | 3.61 | 3.62 | 3.61 | |
| Air Flow | lndoor unit | m3/hr | 450 | 500 | 850 | 1050 |
| Noise Level | lndoor unit | dB(A) | 30-38 | 30-38 | 39-42 | 42-48 |
| Outdoor unit | dB(A) | 52 | 52 | 55 | 56 | |
| Ner Dimension(W×H×D) | lndoor unit | mm | 745×250×210 | 800×280×195 | 900×296×222 | 1080×302×220 |
| Outdoor unit | mm | 715×540×235 | 715×540×235 | 850×605×295 | 870×700×310 | |
| Net Weight | IDU/ODU | kg | 9/28 | 10/29 | 13/40 | 16/56 |
| Packing Dimension(W×H×D) | lndoor unit | mm | 833×330×278 | 865×358×275 | 990×377×300 | 1275×392×318 |
| Outdoor unit | mm | 851×600×335 | 851×600×335 | 995×690×415 | 990×780×410 | |
| Gross Weight | IDU/ODU | kg | 11/33 | 12/33 | 15/45 | 20/63 |
