- Model：Saudi 6 star EER
- Capacity：5000btu-24000btu
- Noise：37db-58db
- Inquire Now

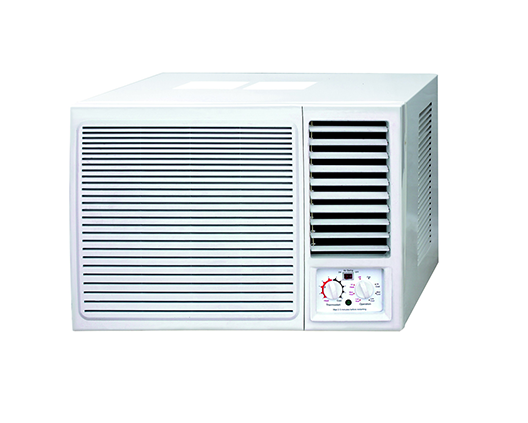

T3 (Tropical) Series (Saudi 6 star EER)
- Features
- Specifications
- Service Support
| 型号 | CW-10C3-J09A | CYW-10C3-J09A | CW-20C3-N07A | CYW-20C3-N09A | CW-25C3-N07A | CYW-25C3-N07A | CW-25C3-U07A | CYW-25C3-U07A | CW-32C3-P07A | CYW-32C3-P07A | |||
| 电压 | V/Hz/Ph | 220/50/1 | 220/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | ||
| 功率 | 制冷 | Btu/h | 3400 | 3400 | 7000 | 7000 | 8530 | 8530 | 12000 | 12000 | 11000 | 11000 | |
| W | 1000 | 1000 | 2052 | 2052 | 2500 | 2500 | 2500 | 2500 | 3200 | 3200 | |||
| 制热 | Btu/h | / | / | / | / | / | / | / | / | / | / | ||
| W | / | / | / | / | / | / | / | / | / | / | |||
| 输入功率 | 制冷 | W | 370 | 370 | 740 | 740 | 980 | 980 | 1000 | 1000 | 1185 | 1185 | |
| 制热 | W | / | / | / | / | / | / | / | / | / | / | ||
| 工作电流 | 制冷 | A | 1.69 | 1.69 | 3.3 | 3.3 | 4.3 | 4.3 | 4.7 | 4.7 | 5.3 | 5.3 | |
| 制热 | A | / | / | / | / | / | / | / | / | / | / | ||
| 制冷能效比 | W/W | 2.7 | 2.7 | 2.70 | 2.70 | 2.55 | 2.55 | 2.50 | 2.50 | 2.70 | 2.70 | ||
| 制热能效比 | W/W | / | / | / | / | / | / | / | / | / | / | ||
| 风速 | 室内机 | m3/hr | 160 | 160 | 380 | 380 | 380 | 380 | 400 | 400 | 500 | 500 | |
| 噪音等级 | 室内机 | dB(A) | 53-55 | 53-55 | 50-53 | 50-53 | 50-53 | 50-53 | 52-56 | 52-56 | 52-55 | 52-55 | |
| 室外机 | dB(A) | 58-61 | 58-61 | 55-59 | 55-59 | 55-59 | 55-59 | 59-63 | 59-63 | 56-60 | 56-60 | ||
| 尺寸(宽×高×深） | 机器尺寸 | mm | 410×300×344 | 410×300×344 | 482×340×510 | 482×340×510 | 482×340×510 | 482×340×510 | 456×345×557 | 456×345×557 | 610×385×536 | 610×385×536 | |
| 包裹尺寸 | mm | 480×380×400 | 480×380×400 | 560×380×560 | 560×380×560 | 560×380×560 | 560×380×560 | 494×607×435 | 494×607×435 | 695×428×580 | 695×428×580 | ||
| 总重量 | 机器/包裹 | Kg | 18/20 | 18/20 | 25/30 | 25/30 | 27/32 | 27/32 | 29/32 | 29/32 | 38/45 | 38/45 | |
