- Model：UL series
- Capacity：5000btu-24000btu
- Noise：37db-58db
- Inquire Now

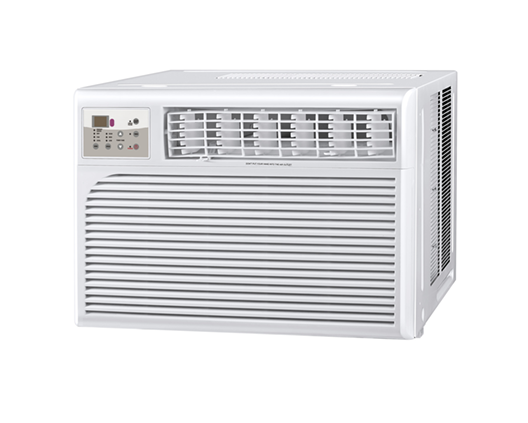

Series 09 (UL series)
- Features
- Specifications
- Service Support
| 型号 | CW-20C3A-N07ACYW-20C3A-N07A | CW-25C3A-N07ACYW-25C3A-N07A | CW-32C3A-P07ACYW-32C3A-P07A | CYW-25H3A-U07A | CYW-32H3A-T07A | ||
| 电压 | V/Hz/Ph | 220-240/51/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | |
| 功率 | 制冷 | Btu/h | 6820 | 8530 | 11000 | ||
| W | 2000 | 2500 | 3200 | 2638 | 3200 | ||
| 制热 | Btu/h | / | / | / | |||
| W | / | / | / | 2500 | 3200 | ||
| 输入功率 | 制冷 | W | 752 | 1000 | 1300 | 1070 | 1420 |
| 制热 | W | / | / | / | 910 | 1360 | |
| 工作电流 | 制冷 | A | 3.3 | 4.8 | 5.8 | 4.7 | 6.3 |
| 制热 | A | / | / | / | 4.1 | 6 | |
| 制冷能效比 | W/W | 2.91 | 2.5 | 2.46 | 2.47 | 2.25 | |
| 制热能效比 | W/W | / | / | / | 2.8 | 2.35 | |
| 风速 | 室内机 | m3/hr | 380 | 380 | 550 | 400 | 490 |
| 噪音等级 | 室内机 | dB(A) | 50-53 | 50-53 | 50-55 | 52-56 | 50-55 |
| 室外机 | dB(A) | 55-59 | 55-59 | 56-60 | 59-63 | 59-64 | |
| 尺寸 (宽×高×深） | 室内机 | mm | 482×340×510 | 482×340×510 | 610×385×536 | 557×456×345 | 610×385×565 |
| 室外机 | mm | 560×380×560 | 560×380×560 | 695×428×580 | 607×494×435 | 700×440×625 | |
| 总重量 | 室内/室外 | kg | 27/32 | 27/32 | 38/45 | 32/35 | 40/43 |
