- Model：(Tropical)-T3
- Capacity：18000btu-60000btu
- Noise：30db-55db
- Inquire Now

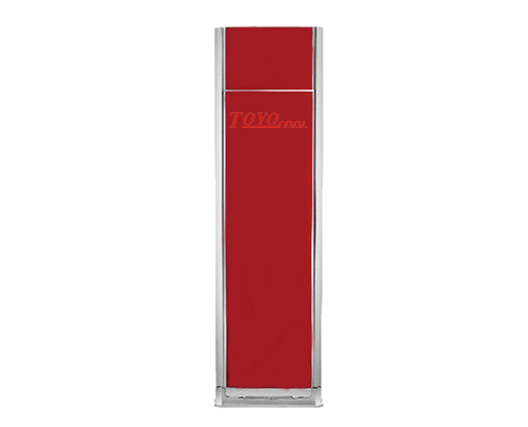

T3 (Tropical) Series
- Features
- Specifications
- Service Support
| Model | CF-72A3A-G33AS | CF-72A3A-K38AS | CF-75W3A-K38AS | ||
| Power Supply | V/Hz/Ph | 220-240/50/1 | 220-240/50/1 | 220-240/50/1 | |
| Capacity | Cooling | Btu/h | 25000 | 25000 | 26000 |
| W | 7200 | 7200 | 7600 | ||
| Heating | Btu/h | 25000 | 25000 | 28700 | |
| W | 7200 | 7200 | 8400 | ||
| Power lnput | Cooling | W | 2770 | 2800 | 2485 |
| Heating | W | 2400 | 2400 | 2470 | |
| Operating Current | Cooling | A | 12.4 | 12.5 | 11.3 |
| Heating | A | 10.8 | 10.8 | 11.2 | |
| EER | W/W | 2.6 | 2.6 | 3.05 | |
| COP | W/W | 3.00 | 3.00 | 3.4 | |
| Air Flow | lndoor unit | m3/hr | 1100 | 1100 | 1100 |
| Noise Level | lndoor unit | dB(A) | 44-49 | 42-48 | 42-49 |
| Outdoor unit | dB(A) | 57 | 57 | 59 | |
| Net Dimension(W×H×D) | lndoor unit | mm | 480×1652×230 | 520×1690×210 | 520×1690×210 |
| Outdoor unit | mm | 870×700×310 | 870×700×310 | 870×700×310 | |
| Net Weight | IDU/OUD | kg | 38/53 | 50/53 | 53/58 |
| Packing Dimension(W×H×D) | lndoor unit | mm | 575×1885×415 | 618×1990×460 | 618×1990×460 |
| Outdoor unit | mm | 990×780×410 | 990×780×410 | 990×780×410 | |
| Gross Weight | IDU/OUD | kg | 49/60 | 62/60 | 74/62 |
